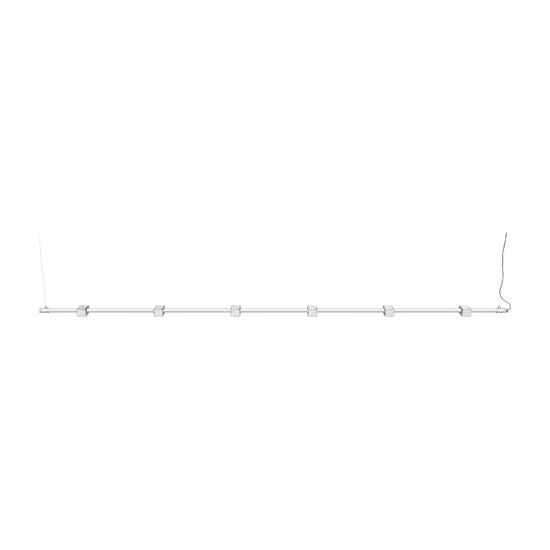

Track-Pipe® | Custom Finish | 3000mm

Track-Pipe® | Custom Finish | 3000mm

you can 'get quote' or checkout from the cart

Technical Specification

  • Supply Voltage: 48 V DC
  • Primary Material: Stainless Steel
  • Finish: Custom Finish
  • Weight: 2.3kg/m

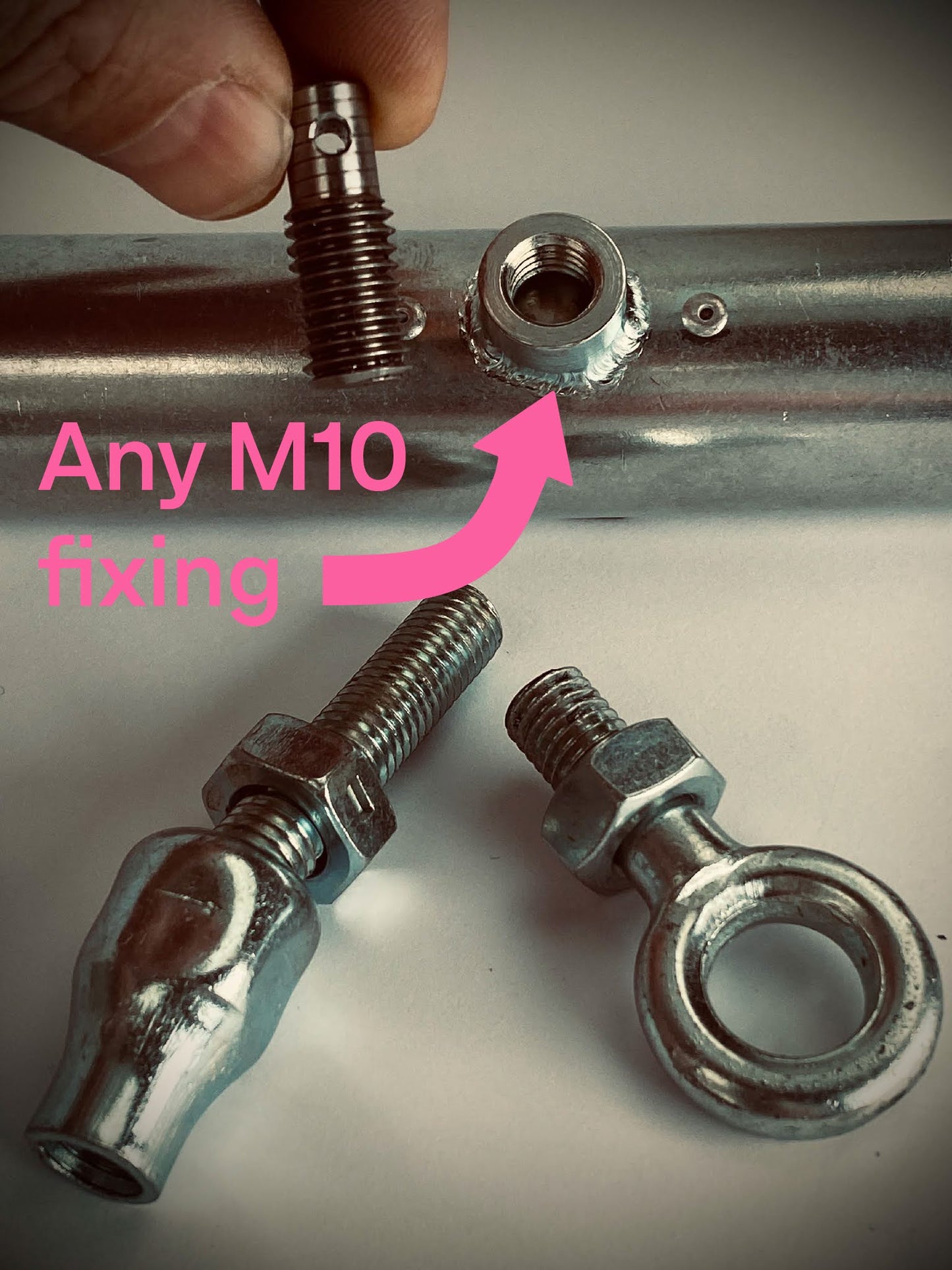

  • Mounting: Wire Suspension | M10 Threaded Rod | Other M10 Fixings
  • IP Rating: IP20
  • Current (mA max.): 6A Max
  • Power Consumption (max. typ.): 288 W Max
  • Operating Temp: Ambient -20°C/+25°C
  • Control: Switched, DALI
  • Standard/Certification: CE | UKCA [BS EN 60598] | USA/Canada: Manufactured in line with UL2108
  • Manufacture: UK

Description

This lighting track system does the same job as regular lighting track, but without the plastics, powder coating and adhesives.

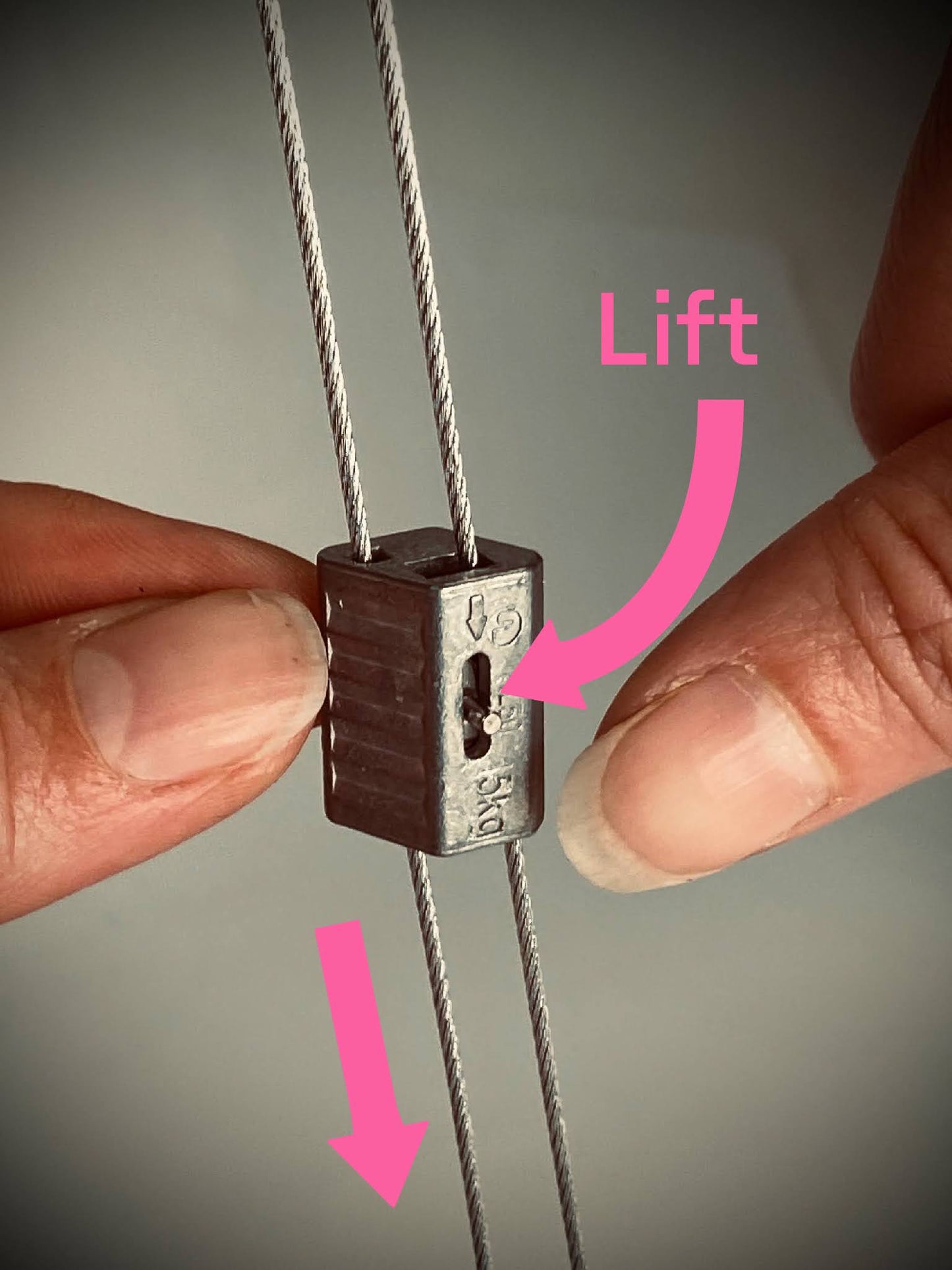

Track-Pipe® is simple to specify and fast to install. The tube is made from high-strength / high-stiffness 304 stainless steel, each extra 3000mm of horizontal tube requires just a single 1mm vertical stainless steel suspension wire. One power and data connection can feed a single run from 1,000mm to 10,000mm long, with up to 20 individual spotlights. Compatible spotlights are easy and safe to reposition anywhere along the tube.

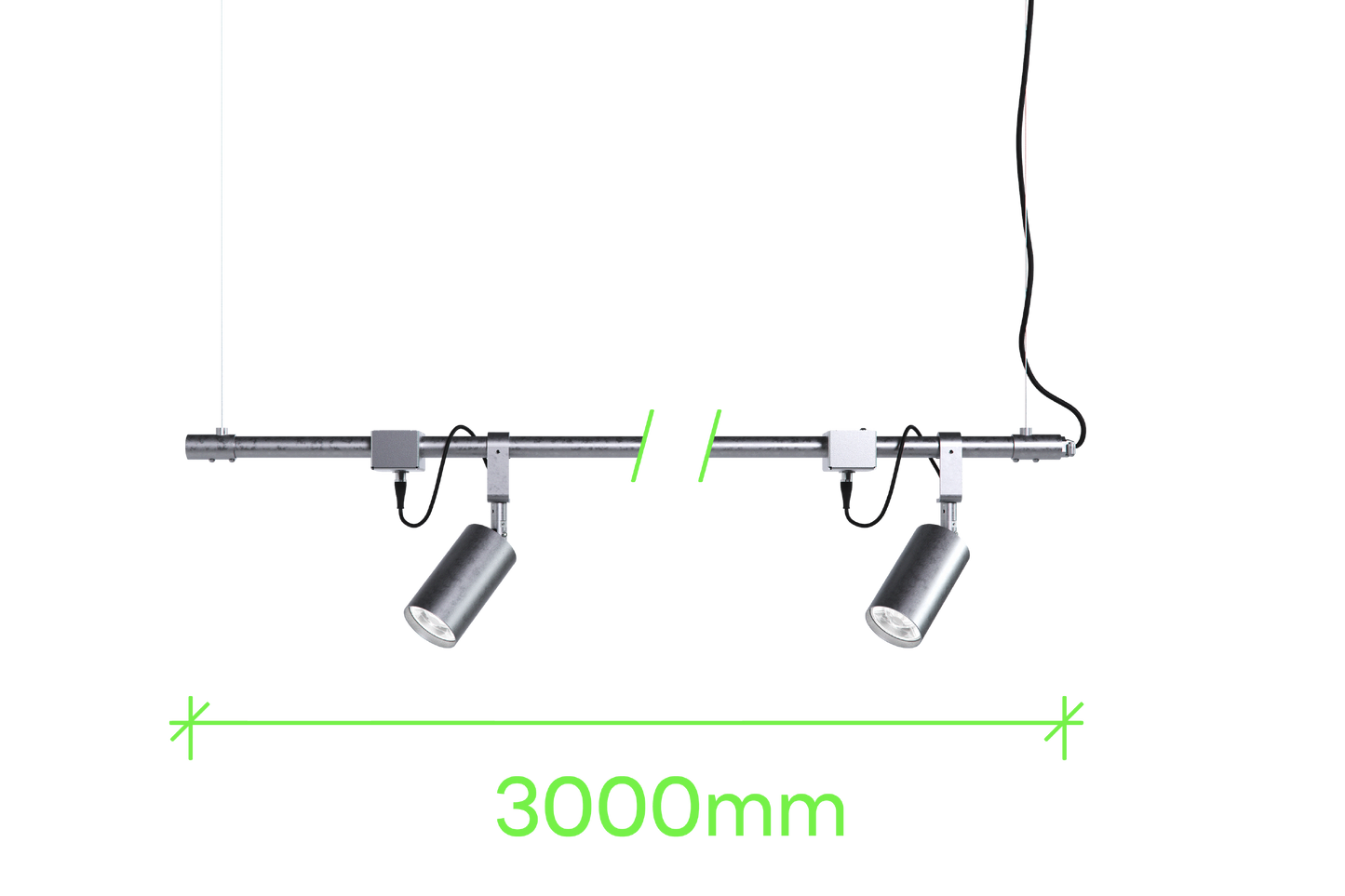

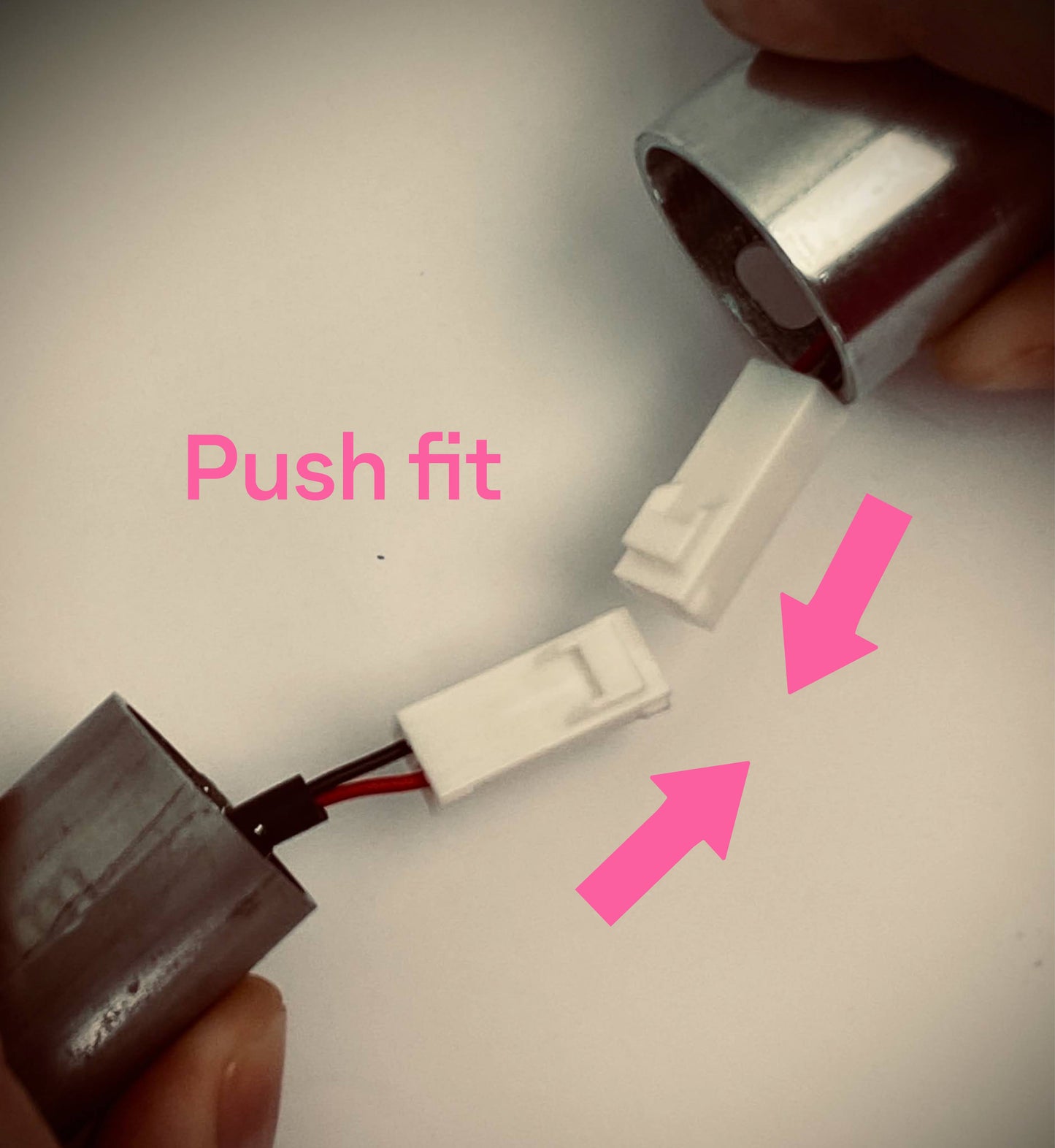

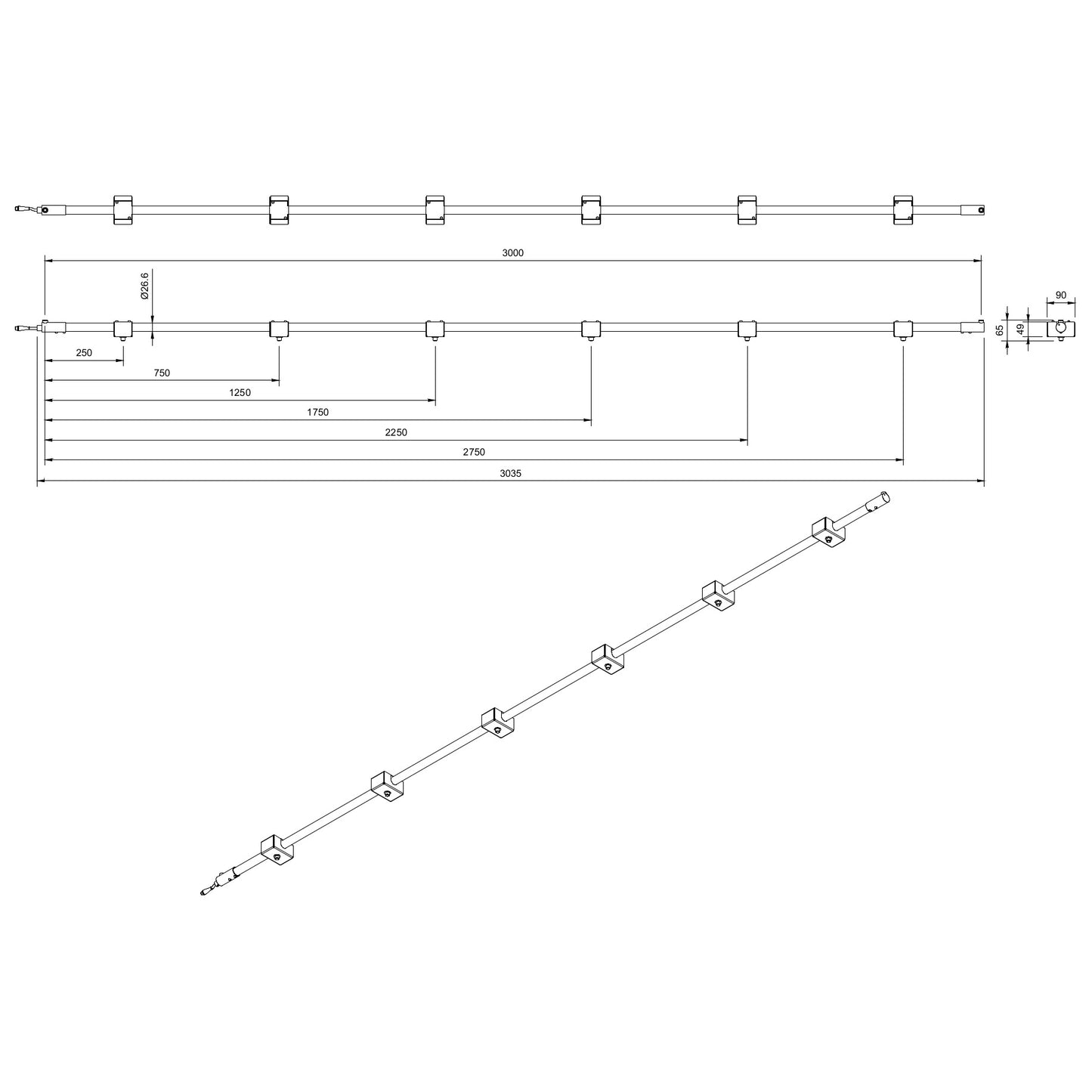

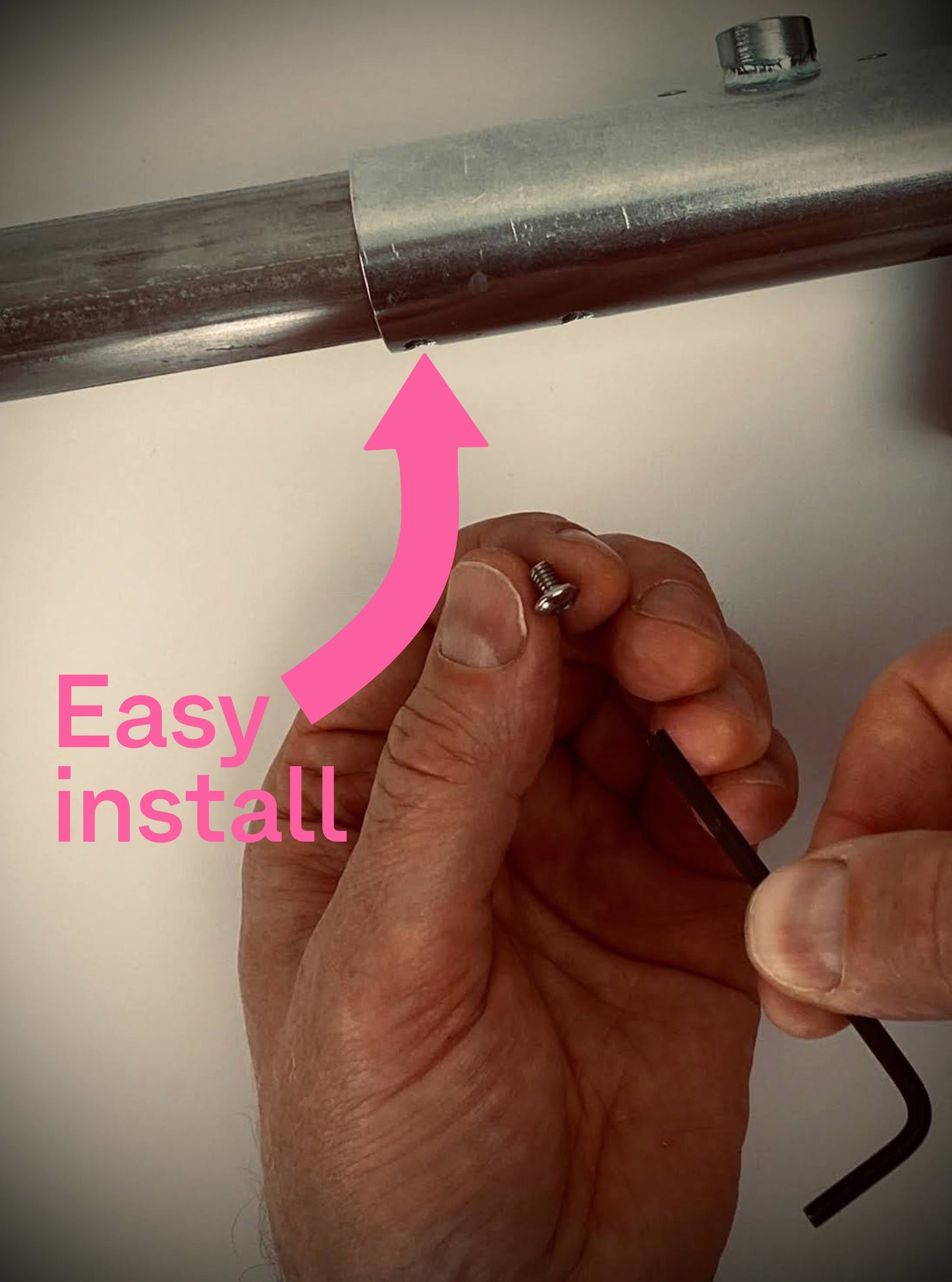

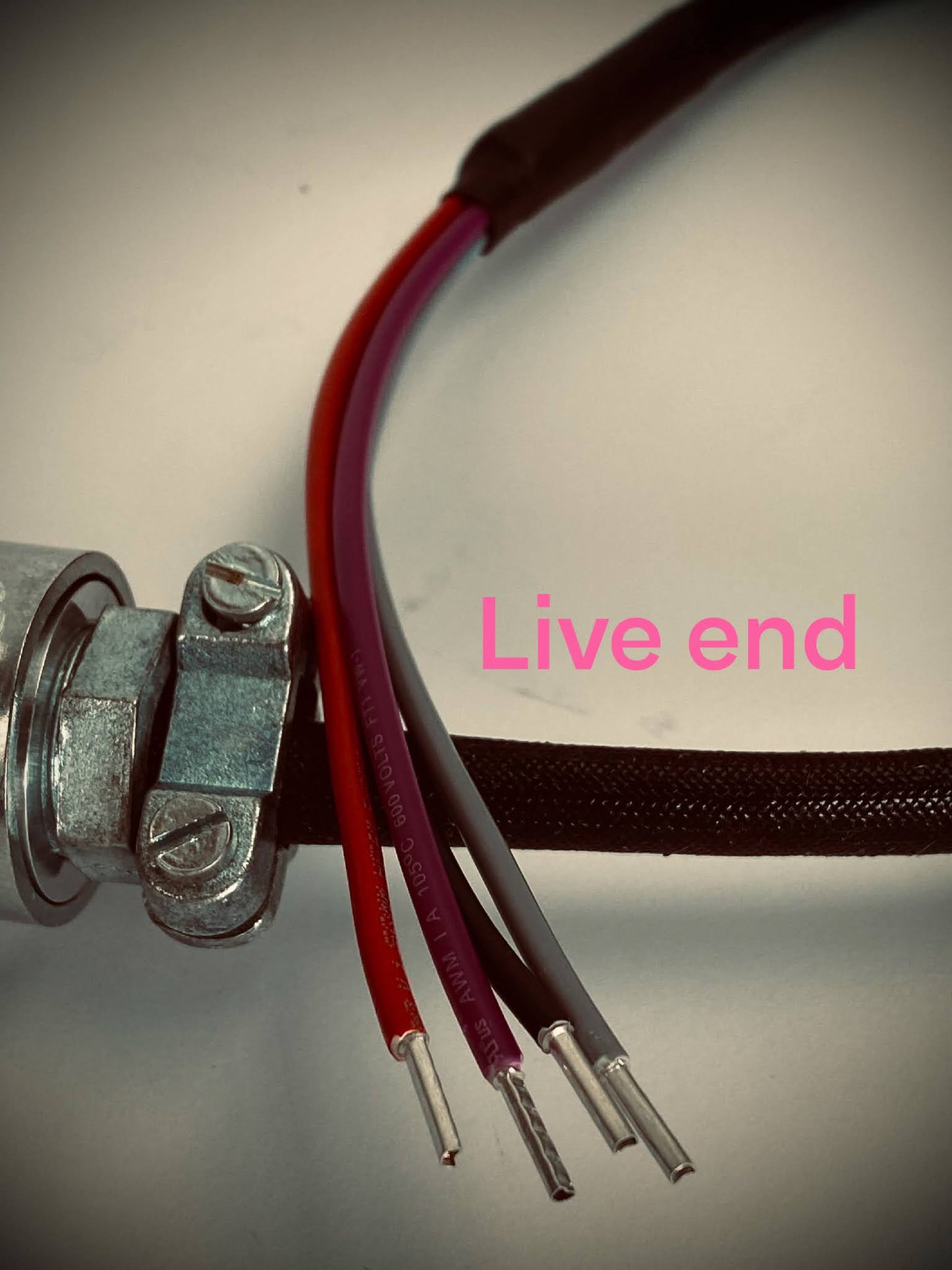

Supplied in straight runs of 1000mm to 10,000mm length, with a single 2000mm long cable to connect your power and data. No on-site measuring, cutting or time-consuming assembly work is required. Runs over 3000mm are supplied in separate pieces that join together with a robust steel coupler and push fit connector for power and data.

Custom Finish offers a choice of Magic-Paint™ in 50+ RAL colours. Regular paint and powder coatings create seriously harmful pollution and are a major source (some studies say most) of microplastics in the environment. Magic-Paint™ is made from natural materials such as clay and does not contain any plastics, Isocyanates, VOCs or EPA-listed toxic organics.

Life Cycle Assessment: this luminaire is specially designed for high-efficacy, low pollution, long service-life and 'closed-loop' re-use. Achieve your sustainable development goals and support environmental / well-being assessments such as BREEAM, LEED, WELL, SKA.

Body:

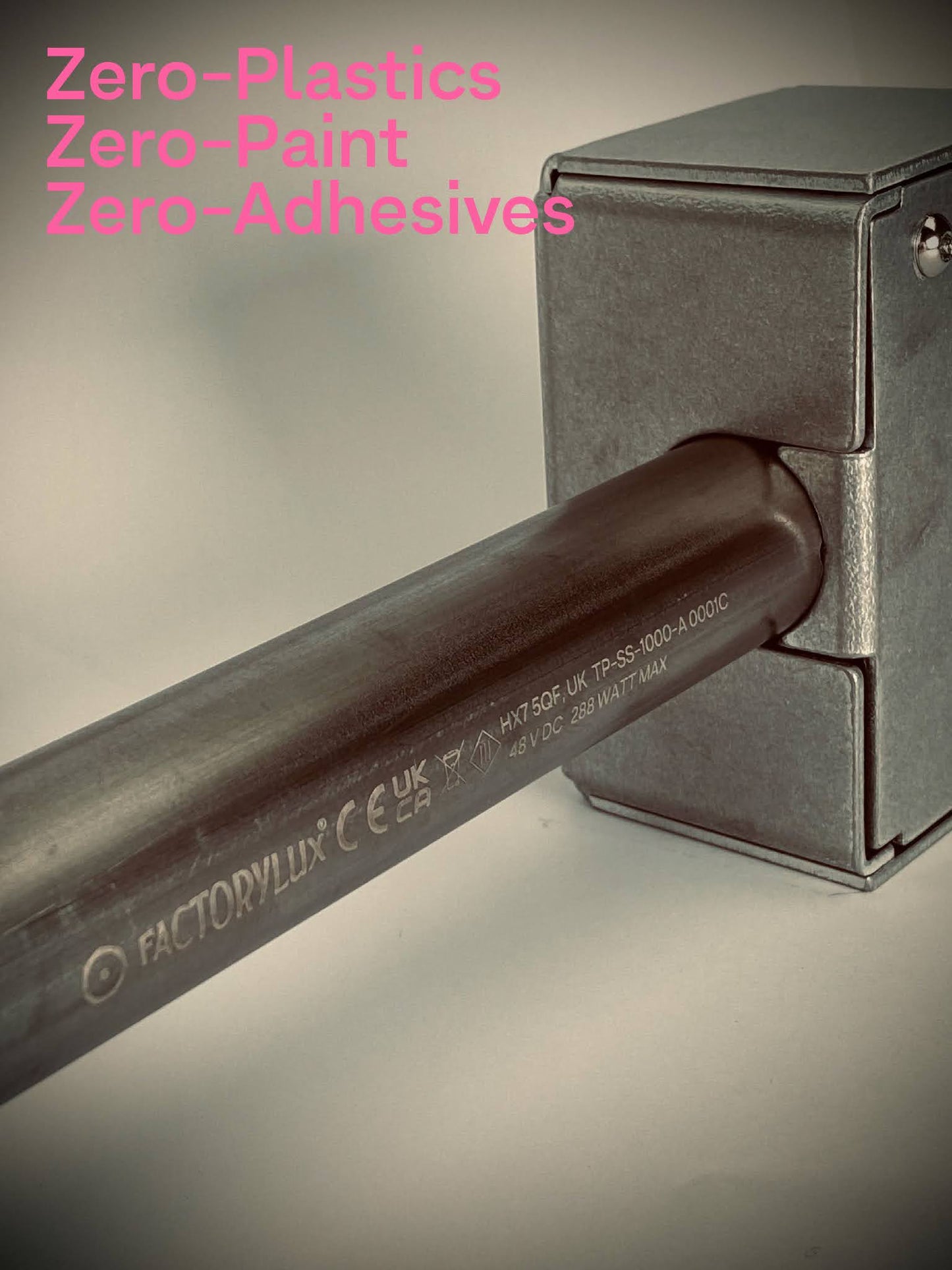

  • 100% free-from paint, plastic & adhesives
  • No microplastic pollution
  • No Isocyanates or VOC (volatile organic compound) off-gassing
  • Repair, upgrade or disassemble with standard tools

Electronics:

  • Long-life, replaceable AC/DC Power Supply
  • PVC-free cables

Closed Loop Circular Economy:

  • Make-Unmake™: our factory can disassemble 'used' Custom Finish Track-Pipe® to re-use body components for our 'worn' lighting
  • Magic-Packaging™: 100% paper - every product, every project (even the pallets and strapping) definitely no plastics
  • 100% Designed & assembled in Yorkshire
  • Component origins include UK, EU, Mexico, China & Taiwan
